Battery Chargers
Battery Chargers
  • for connection to contact wire voltages up to 750V DC
  • freely configurable parameters for charging characteristics

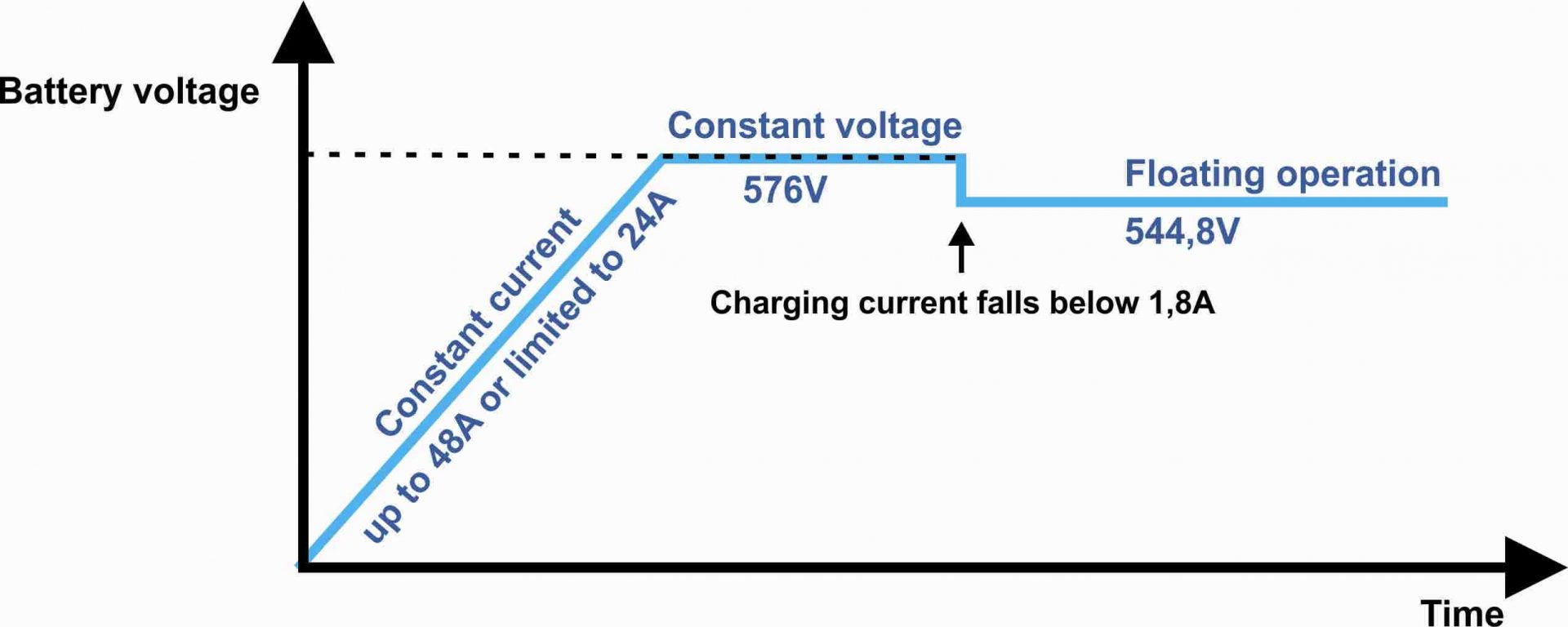

  • constant current / constant voltage charge
  • automatic fail-over to conservation charge
  • battery temperature control
  • complete unit with battery coupling, battery contactor and disconnector
  • comprehensive control and monitoring functions, configurable parameters
Battery Charger HTB 423

Other products upon request

Technical Specifications
Rated power:40kW
Input voltage:750V DC +/-30%
Output voltage:0 ... 720V DC
Rated output current:80A continous
Degree of protection:IP5
4
Dimensions:780 x 880 x 400mm (H x B x T):
Weight:ca. 215kg
Ambient temperature:-25°C ... 40°C
